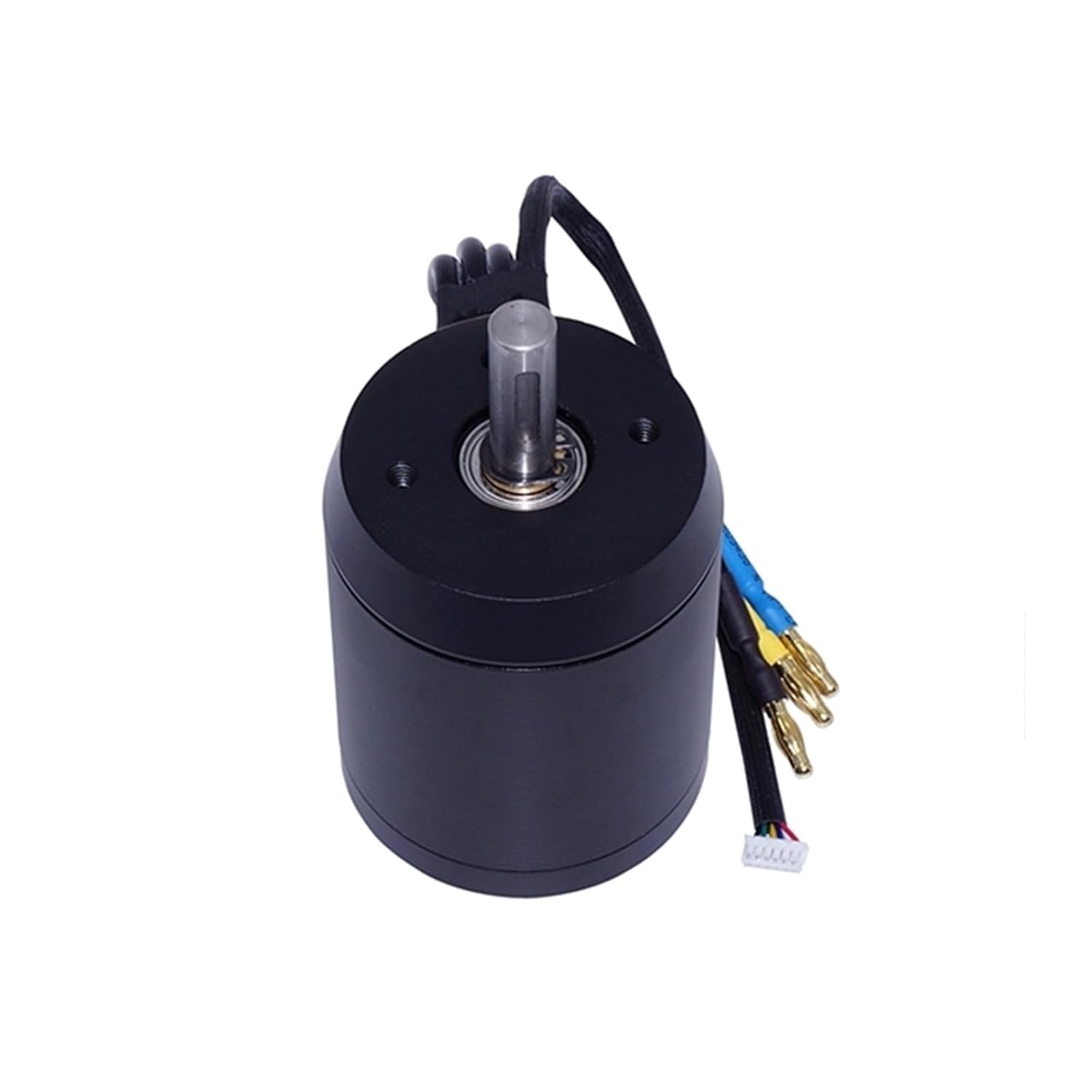

ATO Scooter Motor,1500W 270KV 12S BLDC Outrunner Brushless Motor, for Skateboard Electric Balancing Scooter, with 8mm D-Shaft Pulley

ModelATO-5065Max Power1550W (2 hp)Rotation Speed KV (RPM/V)270KVMax Current80AMax Input Voltage*DC 11-29VMax Torque4 N.mMotor Resistance64mΩRecommend ESC3-12S 50A (FSESC 4.20 50A)Motor Length65mmMotor Diameter50mmWeight0.99 lb (0.45 kg)No-Load Current1A (10V)SHAFTDiameter: 8mmLength: 20mmkeyway slot: 3*3*15mm(Recommended: ATO 8mm motor pulley）Motor Wire160mm silicone 16AWG wire with 4.0mm Gold Bullet Connector MaleWire ConfigurationBlue (Heat shrinkable film) = ABlack (Heat shrinkable film) = BYellow (Heat shrinkable film) = CNumber of poles14Sensor WireStandard RC Sensor Wire JST-ZH 6pin 1.5mm pitchShipping PackageATO-5065*1, Banana head motor 4m female head*3

• Customizable Wheel Hub：Suited for DIY Electric Skateboards, Electric Bikes, Surfboards, and more.
• Robust Power：Boasts a powerful 4 N.m torque and speed, ensuring smooth and responsive acceleration.
• Potent System：Featuring a maximum output power of 1550W (2 hp), a maximum current of 80 Amps, and a maximum voltage of 12S. We recommend using a 3-12S 50A (FSESC 4.20 50A)
• Excellent Design：The overall outer casing has superior finishings for dustproofing, equipped with a robust shaft and laminar steel rotor, utilizing 160mm silicone 16AWG wire with 4.0mm Gold Bullet Connector Male
• Compact and Efficient：Designed for use in skateboards, this brushless motor is known for its efficiency, durability, and quiet operation. Its compact size makes it suitable for various board setups, allowing for easy installation and maintenance.
