Happybuy PID Temperature Controller Kiln Probe 2x40A SSR Relay 2 Heatsink Paragon Pottery Glass for 220V

Control 1) :P, PID ,PI, PD, ON/OFF(P=0) 2) Auto setting control Temperature range -328 ~ 2500 °F (-200 ~2000 °C) - depends on input type. Display - Process value (PV) - Setting value (SV): -1999 ~ +9999 - Output (Out1) - Alarm (ALM1) - Auto setting (AT) - Display: LED Input K (-200~+1300ºC), S (-50~+1600ºC), Wu3-Re25 (0~2000ºC ), R (-50~+1700ºC), T (0~400ºC), E (0~900ºC), J (0~800ºC), B (200~1800ºC), Pt100 (-200~649.0ºC) or (-200~+600ºC), mV,mA,VDC (-1999~+9999) Accuracy Measurement: ±0.2%FS Proportional band/time (P): 0 ~full range (On/Off control when set to 0) Integration time (I): 0~3600 sec (no integral action when set to 0) Derivative time (D): 0~3600 sec (no derivative action when set to 0) Proportional period: 1 ~100 sec On/Off control output hysteretic loop width: 1~100 °C (or other PV units) Control Output Voltage impulse output (applicable for Solid State Relay / SSR). Out1= SSR (heating or cooling side). Alarm Output1= built in relay 5Amp/110V or 3Amp/220V Working Power 90 – 260VAC, 50 – 60 Hz Other Parameters 1) Insulation resistance: >50mΩ (500V DC) 2) Insulation strength: 1500V AC/min 3) Power Consumption: <10V 4) Service environment: 0~50 °C, 30~85RH, no corrosive gas Outline Dimension 48 x 48 x 90mm (1/32 DIN) Features & Specifications: This heavy duty Type K Kiln probe Thermocouple, with 6 Pcs Ceramic Insulator gives you the UNIQUE option of adjusting the probe length to your exact requirement. It can measure up to 1300C (equals to 2372 °F). This high temperature 11 gauge kiln probe comes in 7.5 inch length. The length of this thermocouple is measured by the number of 1 inch long ceramics. Some extra length is added for connections. Thermocouple Type K Measuring Temperature -58 to 2372 °F (-50 to 1300 °C) Gauge 11 Thread material Cr-Ni, Si-Ni 3.2 mm (~0.13 inch)

• Display in either Fahrenheit or Celsius (F & C) temperature unit, temperature range -200 to Output: Voltage pulse to drive SSR, input Thermocouple: K,E,S,B,J,T,R,N Thermal resistance PT100 , Rtd Remote sending manometer line signal 0-5V, 1-5V, 0-20mA, 4-20mA1800 °C (depends on input type)
• Power Supply: 90~260VAC , Dimension: 48mm*48mm*90mm panel mount (DIN 1/16)PID control (including ON/OFF, step-type PID and continuous PID) Self-tuning control, Single set point, Alarm Mode,(heating or cooling side)

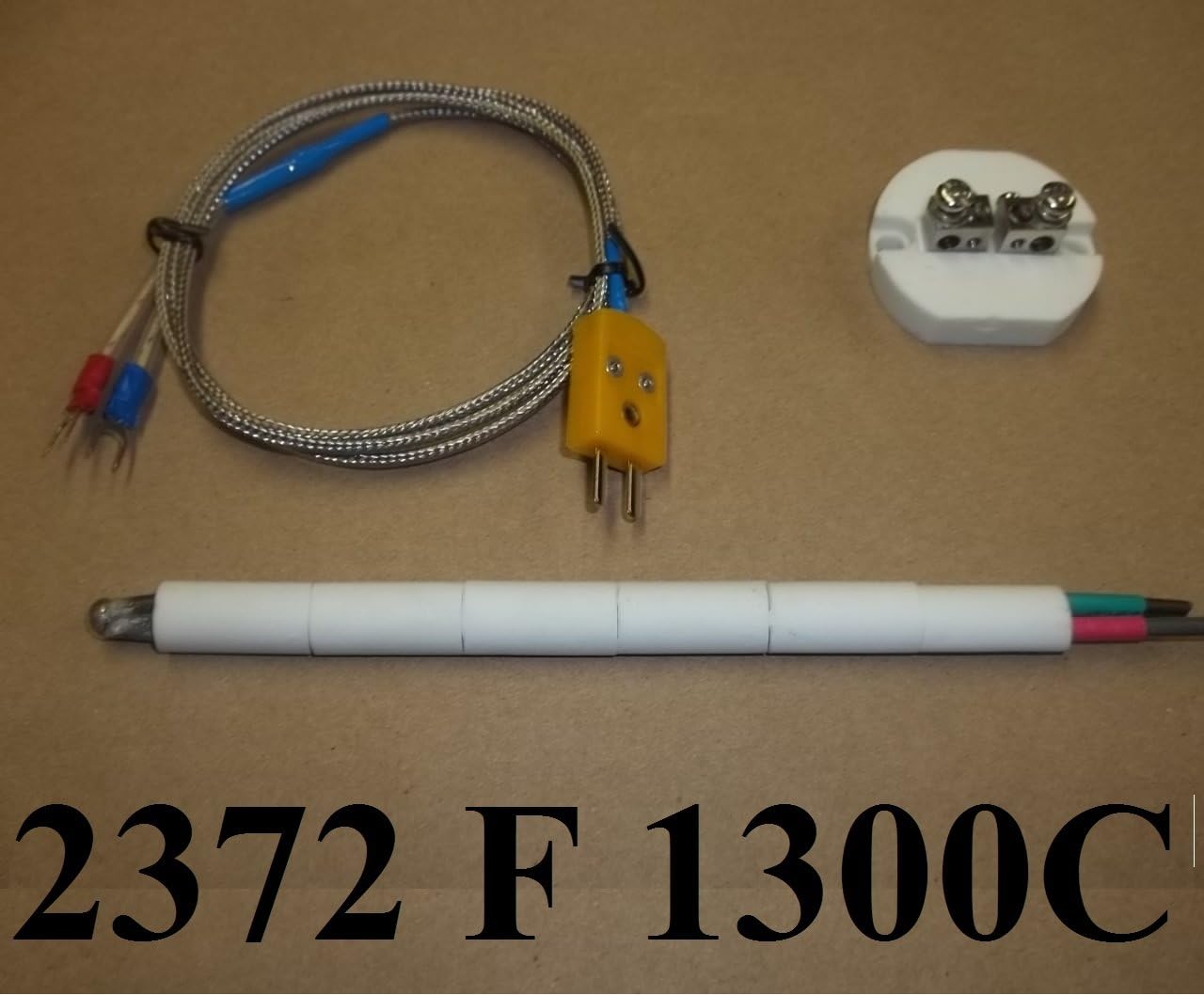

• Kiln Thermocouple with temperature range of -58 to 2372 °F (-50 to 1300 °C)
• A Complete Applicable Package including of one Dual Digital PID Temperature Controller, one Kiln Probe Thermocouple/Sensor & 2 Solid State Relay (SSR) +2 HeatSink for 2 hot line (220V kiln)
• shipping duration to USA is 2-5 business days.
