XR06CX-5R0C1 Digital Thermostat Controller,230V/50-60Hz Compressor Defrost Fan with Probes Inputs for Medium Low Temperature Ventilated Refrigerating Units

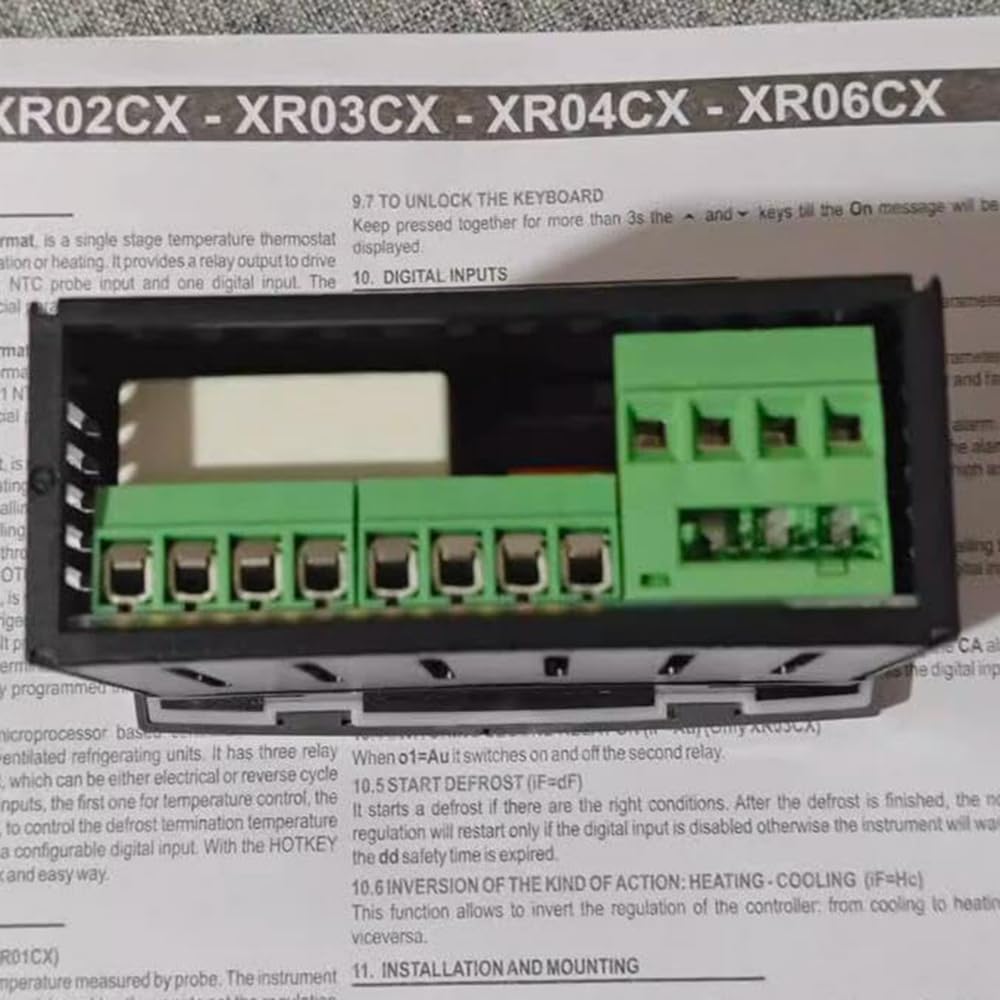

The XR06CX-5R0C1,format 32x74x60mm,is microprocessor based controller,suitable for applications on medium or low temperature ventilated refrigerating units.It has three relay outputs to control compressor,fan,and defrost,which can be either electrical or reverse cycle (hot gas).It is also provided with 2 NTC probe inputs,the first one for temperature control, the second one,to be located onto the evaporator,to control the defrost termination temperature and to managed the fan and it's provided with a configurable digital input.it's possible to program the instrument in a quick and easy way. Specification: Type: XR06CX-5R0C1 Mounting Measurements: 71mm x 29mm Built-in Depth: 56mm Supply: 230V/50-60Hz Voltage Type: AC Probe Type: NTC Number of Relay Outputs: 1 Kind of Protection: IP54 Version: Defrosting Function/Time Control Measuring Range: -40°C up to +110°C Display: 2.5 Digit FANS AND DIGITAL INPUT: When the digital input is configured as door switch iF=do, fans and compressor status depends on the dC parameter value: dC=no normal regulation; dC=Fn fans OFF; dC=cP compressor OFF; dC=Fc compressor and fans OFF. When rd=y,the regulation restart with door open alarm Defrost: Two defrost modes are through the td parameter: td=EL defrost through electrical heater (compressor OFF); td=in hot gas defrost (compressor ON). Suit for: Commercial Refrigerators & Freezers Beer & Beverage Dispensers Wine Coolers & Display Chillers Supermarket & Restaurant Cold Storage Package Include: 1 X Digital Thermostat Controller 2 X Clips 2 X Black Temperature Probes

• Precisely control the temperature with XR06CX-5R0C1 230V/50-60Hz Digital Thermostat Controller for refrigerating units
• Efficiently regulate the performance of compressors,fans,and defrost functions with this versatile thermostat controller
• With adjustable temperature options and two NTC probe inputs,achieve refrigeration in medium to low ventilated units
• This controller is suit for including Chest Freezer,Commerical Kegerator,Compact Fridge,Compressor Wine Fridge,Kegerator Tank/Cartridge,Kegerator Tap,Larder Fridge,Miniature Kegerator,Mini Freezer,Mini Fridge
• User-friendly digital interface allows easy setup and adjustment of temperature settings for system control
